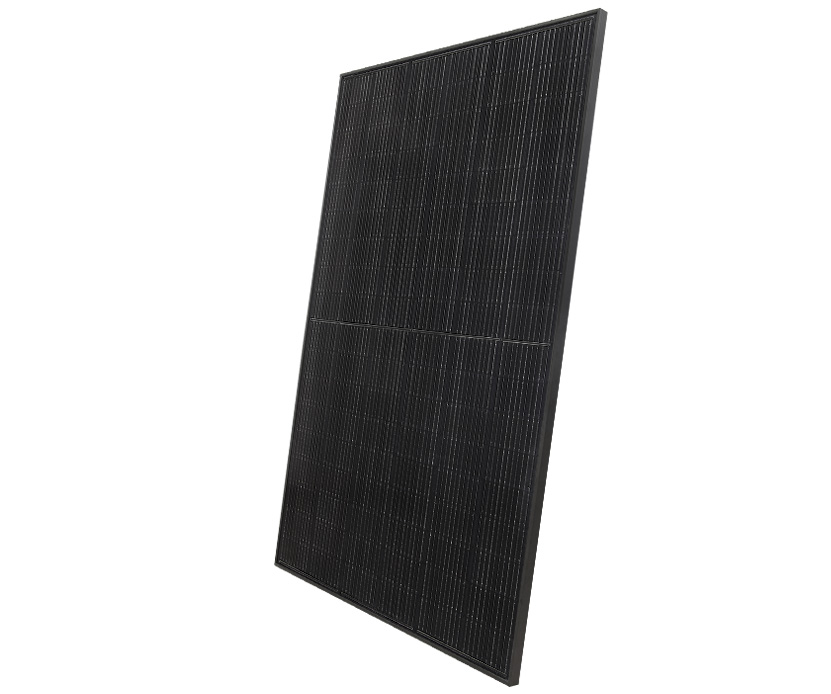

Solarmodul 435 Watt komplett schwarz
Art.-ID 16499
- Leistung: 435 Watt
- Wirkungsgrad: 22,28 %
- Größe: 1722 x 1134 x 30 mm
- Gewicht: 22 kg
- 25 Jahre Leistungsgarantie + 20 Jahre Materialgarantie
Passende Produkte
Comprehensive Certificates
- ISO9001:2015
- ISO14001:2015
- ISO45001:2018
- IEC61215/IEC61730
Technische Daten
Merkmale
SMBB Technology
PID Resistance
Durability Against Extreme Environmental Conditions
Hot 2.0 Technology
Enhanced Mechanical Load
Linear performance Warranty
Data-Sheet
| Module | PM-435W(108) TOPCON | ||||
|---|---|---|---|---|---|
| Efficiency (%) | 22.28 | ||||
| Tolerance (W) | 0 ∼ +3 | ||||
| Standard Test | STCNOCT | ||||
| Maximum Power (Pmax ⁄ W) | 435327 | ||||
| Open Circuit Voltage Voc(V) | 37.79V36.74V | ||||
| Short Circuit Current Isc(A) | 14.45A11.55A | ||||
| Maximum Power Voltage Vmp(V) | 31.73V29.75V | ||||
| Maximum Power Current Imp(A) | 13.72A10.99A | ||||
| Cells (mm) | 182 N type TOPCON Mono-crystalline | ||||
| Cells Qty (Pcs) | 108(2x54) | ||||
| Max System Voltage (V) | 1000/1500VDC (IEC) | ||||
| Temperature coefficients of Pmax | -0.29 %/°C | ||||
| Temperature coefficients of Voc | -0.25 %/°C | ||||
| Temperature coefficients of Isc | 0.045 %/°C | ||||
| Operate Temp (°C) | -40 to 85 | ||||
| Nominal Operating cell temperature NOCT | 45±2°C | ||||
| Max Series Fuse Rating (A) | 25A | ||||
| STC: Irradiance 1000W/m² | Cell Temperature 25°C | AM=1.5 NOCT: Irradiance 800W/m² | Ambient Temperature 20°C | AM=1.5 | Wind Speed 1m/s | |||||
| Raw material | |||||
| Frame | Anodized Aluminium Alloy | Front Glass | 2.0 mm, Anti-Reflection Coating | ||
| Cell | 108 (2x54pcs) | Connector | 4 mm², MC4 or EVO2 | ||
| Diode Qty | 3 | Junction box | IP68 | ||
| Cable (mm) | 300 | ||||
| Package | |||||
| Module size (mm) | 1722x1134x30 | Weight (kg) | 22 | ||
| Loading | 936 PCS/40HQ | Package | 36PCS/PLT | ||
Data-Sheet
