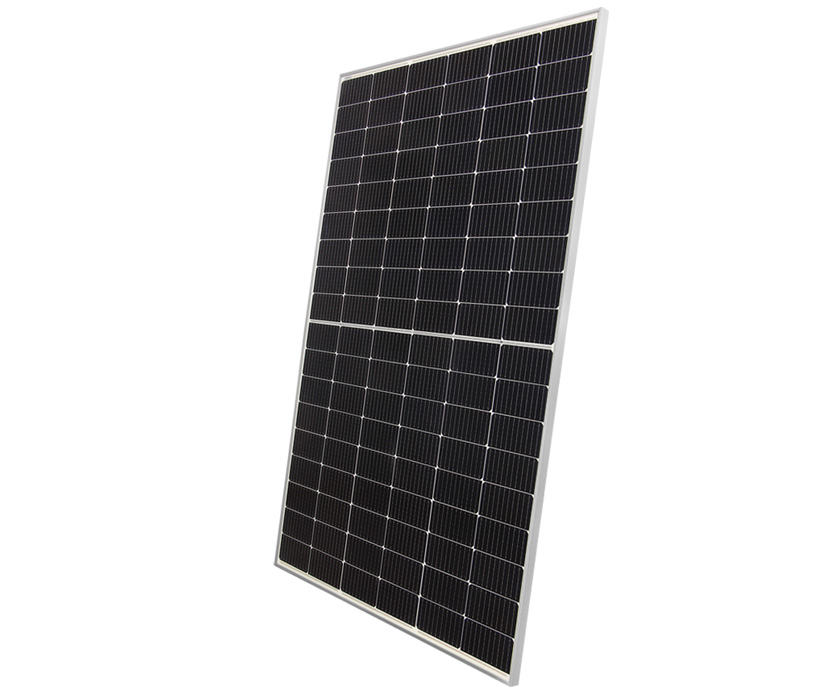

Solarmodul 585 Watt schwarz/silber
Artikel-Id: 16500
- Leistung: 585 Watt
- Wirkungsgrad: 22,65 %
- Größe: 2278 x 1134 x 35 mm
- Gewicht: 28 kg
- 25 Jahre Leistungsgarantie + 20 Jahre Materialgarantie
Passende Produkte
Comprehensive Certificates
- ISO9001:2015
- ISO14001:2015
- ISO45001:2018
- IEC61215/IEC61730
Technische Daten
Merkmale
SMBB Technology
PID Resistance
Durability Against Extreme Environmental Conditions
Hot 2.0 Technology
Enhanced Mechanical Load
Linear performance Warranty
Data-Sheet
| Module | PM-585W(144) TOPCON | ||||
|---|---|---|---|---|---|
| Efficiency (%) | 22.65 | ||||
| Tolerance (W) | 0 ∼ +3 | ||||
| Standard Test | STCNOCT | ||||
| Maximum Power (Pmax ⁄ W) | 585 Wp440 Wp | ||||
| Open Circuit Voltage Voc(V) | 51.16V48.60V | ||||
| Short Circuit Current Isc(A) | 14.55A11.75A | ||||
| Maximum Power Voltage Vmp(V) | 42.52V39.81V | ||||
| Maximum Power Current Imp(A) | 13.76A11.05A | ||||
| Cells (mm) | N type TOPCON Mono-crystalline | ||||
| Cells Qty (Pcs) | 144(6x24) | ||||
| Max System Voltage (V) | 1000/1500VDC (IEC) | ||||
| Temperature coefficients of Pmax | -0.29 %/°C | ||||
| Temperature coefficients of Voc | -0.25 %/°C | ||||
| Temperature coefficients of Isc | 0.045 %/°C | ||||
| Operate Temp (°C) | -40 to 85 | ||||
| Nominal Operating cell temperature NOCT | 45±2°C | ||||
| Max Series Fuse Rating (A) | 25A | ||||
| STC: Irradiance 1000W/m² | Cell Temperature 25°C | AM=1.5 NOCT: Irradiance 800W/m² | Ambient Temperature 20°C | AM=1.5 | Wind Speed 1m/s | |||||
| Raw material | |||||
| Frame | Anodized Aluminium Alloy | Front Glass | 3.2 mm, Anti-Reflection Coating Hight Transmission, Low Iron, Tempered Glass | ||
| Cell | 144 (6x24pcs) | Connector | 4 mm², MC4 or EVO2 | ||
| Diode Qty | 3 | Junction box | IP68 | ||
| Cable (mm) | 300 | ||||
| Package | |||||
| Module size (mm) | 2278x1134x35 | Weight (kg) | 28 | ||
| Loading | 620 PCS/40HQ | Package | 31PCS/PLT, 62 Pcs/stack | ||
